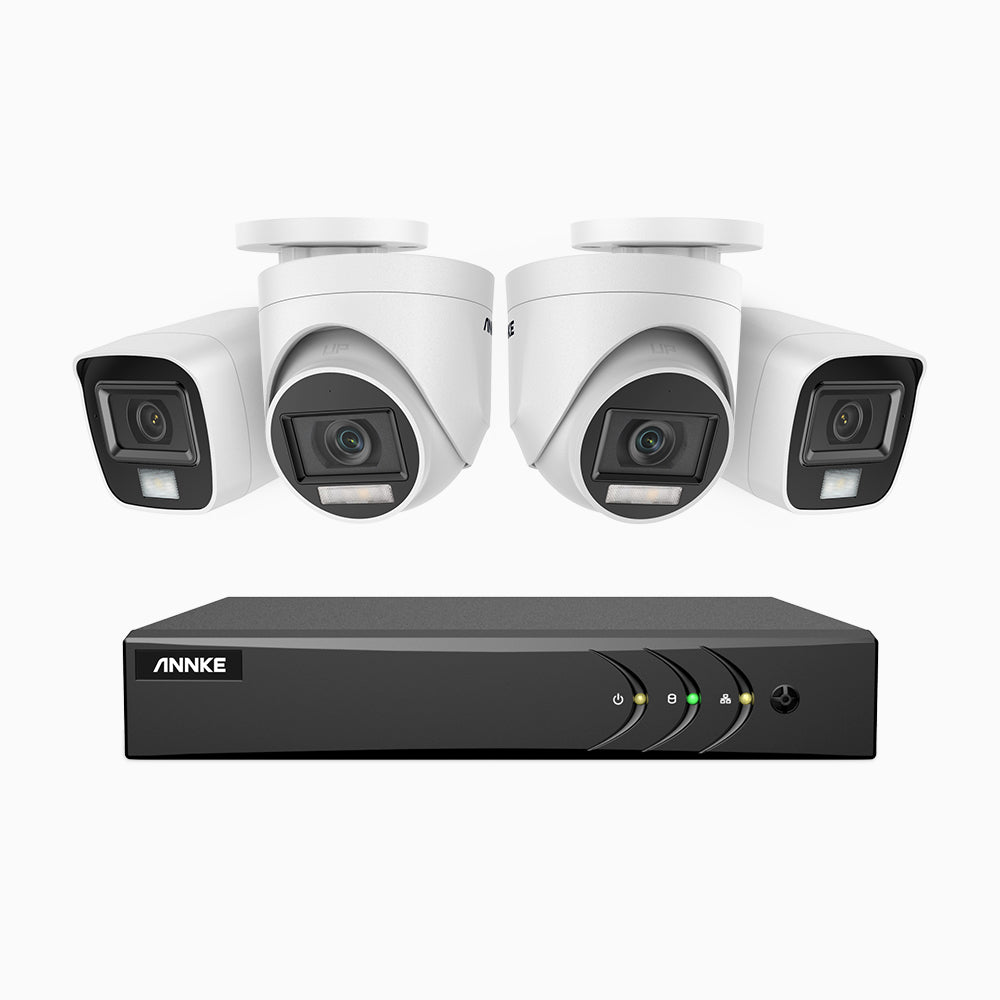

ADLK200 - 1080P 8 Channel Wired Security System with 2 Bullet & 2 Turret Cameras, Color & IR Night Vision, 4-in-1 Output Signal, Built-in Microphone, IP67 Weatherproof

SKU: DW81KD+CT1GT*2+CT1GU*2
C$217.99
C$241.99
C$217.99
HDD Capacity: NO HDD
Subtotal: C$217.99
ADLK200 - 1080P 8 Channel Wired Security System with 2 Bullet & 2 Turret Cameras, Color & IR Night Vision, 4-in-1 Output Signal, Built-in Microphone, IP67 Weatherproof

ADLK200 - 1080P 8 Channel Wired Security System with 2 Bullet & 2 Turret Cameras, Color & IR Night Vision, 4-in-1 Output Signal, Built-in Microphone, IP67 Weatherproof

C$241.99 C$217.99

ADLK200 - 1080P 8 Channel Wired Security System with 2 Bullet & 2 Turret Cameras, Color & IR Night Vision, 4-in-1 Output Signal, Built-in Microphone, IP67 Weatherproof

C$241.99 C$217.99
HDD Capacity: NO HDD

ANNKE ADLK200

Smart Dual Light for Marvelous
Night Visual Experience

See Every Detail with 1080p Full HD Quality

By adopting the latest 2MP CMOS imaging sensor, the camera records true crystal-clear 1080p full HD videos with a pixel ratio of 1920 x 1080 day & night. Plus a 3.6mm fixed focal lens and f/1.2 large aperture brings a 92° FOV to picture all within your control.

Smart Dual Light for All-Night Security Coverage

Default smart dual light mode, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 25 m, up to 20 m white light distance for bright night imaging.
Note: A DVR that supports AI is required to realize the dual light function. (Perfectly works with DW41JD, DW81KD, DW61LD DVR).

Audio Recording with Built-in Mic

The camera's built-in microphone supports coaxial transmission, allowing you to hear and record crisp, clear audio without using any additional cables to power the microphone.

4-in-1 HD TVI/CVI/AHD/CVBS

One port for four switchable signals(TVI/AHD/CVI/CVBS), you can select from a wide range of compatibility with the camera’ s selectable output.

Easy Installation & Angle Adjustment

The camera can be installed easily, with no need for an additional adaptor box. The flexible cardan axis bracket enables you to adjust the camera's pointing direction and the field of view easily & effortlessly.

Image Enhancement - Digital WDR

With advanced digital WDR technology, you can get clear details in the environment of strong brightness contrast. In high brightness and back-light environment, bright region and dark region with strong light source, you can also get clear images.

Built to Effortlessly Handle Tough Conditions

With the IP67 weatherproof rating, the powerful camera is built to be installed outdoors & indoors with its cold & hot resistance (-40 °F - 140 °F/-40 °C - 60 °C). Whether you need a security solution for your home or business, this camera can be the best partner with your DVR.

Plastic

Rugged Housing

-40 °F | -40 °C

Cold Rating

140 °F | 60 °C

Heat Rating

IP67

Water Rating

Download adlk Specification

Image sensor2MP CMOS Image sensor Video Resolution1920 (H) × 1080 (V)
Signal SystemPAL/NTSC Lens3.6mm
Frame Rate 1080P @ 30 fps, 1080P @ 25 fps / CVBS: PAL/NTSC Min.IlluminationColor:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Angle of ViewHorizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92° Supplement Light type1 white Light & 1 EXIR
Supplement Light RangeIR : Up to 30 m, white Light : Up to 20 m Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic RangeDigital WDR AudioBuilt-in mic
IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
Image sensor2MP CMOS Image sensor
Signal SystemPAL/NTSC
Frame Rate 1080P @ 30 fps, 1080P @ 25 fps / CVBS: PAL/NTSC
Angle of ViewHorizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Supplement Light RangeIR : Up to 30 m, white Light : Up to 20 m
Wide Dynamic RangeDigital WDR
IR Cut FilterYes
Video Resolution 1920 (H) × 1080 (V)
Lens 3.6mm
Min.Illumination Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Supplement Light type 1 white Light & 1 EXIR
Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
Audio Built-in mic
Video Output BNC, switchable TVI/AHD/CVI/CVBS
General(CT1GU)
HousingMetal & Plastic ColorWhite
Operating PowerDC12V± 25%,  Max. 3.3 W Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
Dimension (L x W x H)80 mm × Ø85.1 mm (3.1" × Ø3.4") WeightApprox. 296 g (0.65 lb.)
HousingMetal & Plastic
Operating PowerDC12V± 25%,  Max. 3.3 W
Indoor/OutdoorIndoor/Outdoor
Dimension (L x W x H)80 mm × Ø85.1 mm (3.1" × Ø3.4")
Color White
Operating Temperature -40 °F – 140 °F /-40 °C – 60 °C
Weatherproof Rating IP67
Weight Approx. 296 g (0.65 lb.)
Camera(CT1GT)
Image sensor2MP CMOS Image sensor Video Resolution1920 (H) × 1080 (V)
Signal SystemPAL/NTSC Frame Rate1080P @ 30 fps, 1080P @ 25 fps / CVBS: PAL/NTSC
Lens3.6mm Min.IlluminationColor:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Angle of ViewHorizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92° Supplement Light type1 white Light & 2 EXIR
Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
Wide Dynamic RangeDigital WDR AudioBuilt-in mic
IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
Image sensor2MP CMOS Image sensor
Signal SystemPAL/NTSC
Lens3.6mm
Angle of ViewHorizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m
Wide Dynamic RangeDigital WDR
IR Cut FilterYes
Video Resolution 1920 (H) × 1080 (V)
Frame Rate 1080P @ 30 fps, 1080P @ 25 fps / CVBS: PAL/NTSC
Min.Illumination Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Supplement Light type 1 white Light & 2 EXIR
Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
Audio Built-in mic
Video Output BNC, switchable TVI/AHD/CVI/CVBS
General(CT1GT)
HousingPlastic  ColorWhite
Operating PowerDC12V Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
Dimension (L x W x H)138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") WeightApprox. 155 g (0.34 lb.)
HousingPlastic
Operating PowerDC12V
Indoor/OutdoorIndoor/Outdoor
Dimension (L x W x H)138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
Color White
Operating Temperature -40 °F – 140 °F /-40 °C – 60 °C
Weatherproof Rating IP67
Weight Approx. 155 g (0.34 lb.)
