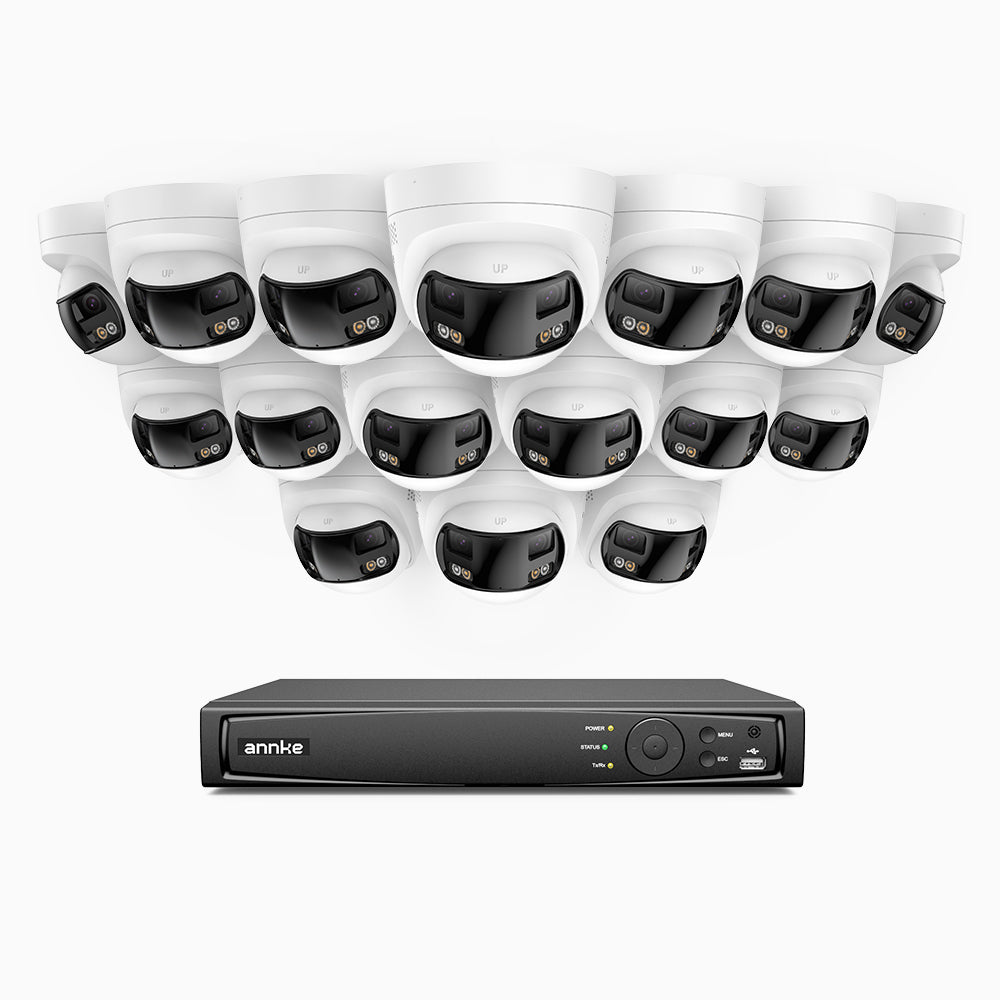

ANNKE FDH600 6MP 16 Channel 16 Camera Dual Lens PoE Security System - ANNKE Store

FDH600 - 16 Channel PoE Security System with 16 Dual Lens Cameras, 6MP Resolution, 180° Ultra Wide Angle, f/1.2 Super Aperture, Built-in Microphone, Active Siren & Alarm, Human & Vehicle Detection, 2-Way Audio

FDH600 - 16 Channel PoE Security System with 16 Dual Lens Cameras, 6MP Resolution, 180° Ultra Wide Angle, f/1.2 Super Aperture, Built-in Microphone, Active Siren & Alarm, Human & Vehicle Detection, 2-Way Audio

C$3,081.99

C$3,851.99

SKU: N46PCK+I51DW*16

Appearance
HDD Capacity

Tags: 16 , 16-Channel NVR , 6MP , Built-in Microphone , Bullet , Color Night Vision , Dual-Lens , Turret , Two-Way Audio

ANNKE FDH600

Dual-Lens & Full Color
Making Vision Wider, World More Colorful

  • 6MP

    BSI Sensor
    Ultra HD Clarity

  • 2X

    Lenses & Sensor
    180° Wide Angle

  • Color

    Full Color Night Vision
    Two Light Modes

  • AI 2.0

    Smart Detection
    More Accurate Alerts

  • 6MP & BSI Sensor, Clearer Image

    Equipped with double 1/2.5" BSI sensors, the camera provides unparalleled Ultra HD videos at 3632 × 1632 resolution. You can freely zoom in or zoom out the details in the image, whether it is the vehicle information in the distance, such as the license plate, or the near image, it is very clear.

    Dual-lens Fusion Splicing 180°
    Ultra-wide Viewing Angle

    The dual-lens camera can intelligently splicing images into a 180-degree video image without dead ends, and maintains the aspect ratio of 20:9. Image fusion technology keeps the brightness and color matching of images highly consistent, showing a perfect spliced image.

    Smart Detection Motion 2.0, Brings
    99% Accurate Alerts

    Smart Detection Motion 2.0, Brings 99% Accurate Alerts

    Using an intelligent algorithm based on a deep learning platform, the camera not only supports human and vehicle detection, but also supports line crossing detection, intrusion detection, region entrance detection, region exiting detection.

  • Line Crossing
    Detection

  • Intrusion
    Detection

  • Region Entrance
    Detection

  • Region Exit
    Detection

  • Human & Vehicle
    Detection

  • Pre-Active Defense with Siren Deterrence

    When a potential intruder, human or vehicle is detected, the built-in horn supports alarm sound output, triggering the alarm to scare the intruder away. There are 12 kinds of alarm sounds to choose from, you can also record your own sound as an alarm sound. The volume of the alarm sound can be adjusted, and the maximum volume is 95dB. External alarm, audio input and output devices can be connected.

    Day or Night, Full Color Design
    Restores the Real Scene

    This camera has two lighting modes for you to choose: IR fill light: black and white picture; white light fill light: color night vision. You can change the light mode yourself through your browser settings. Note: Bullet: Color Night Vision; Turret: Infrared Night Vision

    Synchronized Pickup, Bid Farewell
    to Silent Monitoring

    Synchronized Pickup, Bid
    Farewell to Silent Monitoring

    The built-in noise-canceling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away, to help produce videos with HiFi volume quality.

    Noise-Cancelling Audio

    The built-in noise-canceling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away, to help produce videos with HiFi volume quality.

    Two-Way Audio

    2-way audio enhances the security coverage & the ability to interpret events. Talk to the delivery man at your doorstep to confirm the package delivery. Say “Hi” to your guests – a camera that can see, hear & talk.

    Built to be Prominent in the Harshest Climates

    IP66 rated, the powerful weatherproof camera, is designed to work for extreme indoor & outdoor use from -22 °F/-30 °C to 140 °F/60 °C. Whatever the scorching weather or the freezing climates, the camera still works perfectly to produce perfect 6MP videos without the degraded resolution. Made from the heavy-duty ABS, the camera housing can withstand large impacts and is highly resistant to corrosion. Provide you with long-lasting and durable protection.

  • ABS

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP66

    Water Rating

  • Remote APP Control

    You can preview or playback remotely through the APP, view current and past situations anytime and anywhere, and support multi-device remote access.

    Small on Prices, Big on Features

  • Advanced H.265 coding

    H.265 coding helps the camera record longer videos and consumes less bandwidth.

  • 120dB WDR & 3D DNR

    Allow the PoE camera to capture clear footage and images without noise at night.

  • PoE & DC 12V Power Supply

    Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for the power supply.

  • Multiple Protocols

    Supporting RTSP, FTP, etc.

  • Specification

    Download FCD600 Specification

    Camera
    Image sensor2×1/2.5" Progressive Scan CMOS Main Stream50 Hz: 20 fps (3632 × 1632)
    60 Hz: 20 fps (3632 × 1632)
    Sub Stream50 Hz:20 fps(1200 × 536,960 × 432)
    60 Hz:20 fps(1200 × 536,960 × 432
    Video compressionMain Stream: H.265/H.264
    Sub Stream: H.265/H.264/MJPEG
    Video Bit Rate32 Kbps to 16 Mbps Built-in MicrophoneYes, support environment noise filtering
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3 Built-in SpeakerYes, max. sound pressure: 10 cm: 95 dB
    LensDual lens: 2.8 mm Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR)
    Angle of ViewHorizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10° Supplement Light RangeWhite light up to 20 m, IR light up to 30m
    Image Parameters SwitchYes Image EnhancementBLC, HLC, 3D DNR
    Wide Dynamic Range120dB WDR Network ProtocolsTCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket,Onvif
    Basic EventMotion detection (support human and vehicle detection), video tampering Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection)
    Audio AlarmSupport(Parameters adjustable,support custom audio, can be triggered from APP)
    Image sensor2×1/2.5" Progressive Scan CMOS
    Sub Stream50 Hz:20 fps(1200 × 536,960 × 432)
    60 Hz:20 fps(1200 × 536,960 × 432
    Video Bit Rate32 Kbps to 16 Mbps
    Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
    LensDual lens: 2.8 mm
    Angle of ViewHorizontal FOV: 180° ± 10°, Vertical FOV: 81° ± 10°
    Image Parameters SwitchYes
    Wide Dynamic Range120dB WDR
    Basic EventMotion detection (support human and vehicle detection), video tampering
    Audio AlarmSupport(Parameters adjustable,support custom audio, can be triggered from APP)
    Main Stream 50 Hz: 20 fps (3632 × 1632)
    60 Hz: 20 fps (3632 × 1632)
    Video compression Main Stream: H.265/H.264
    Sub Stream: H.265/H.264/MJPEG
    Built-in Microphone Yes, support environment noise filtering
    Built-in Speaker Yes, max. sound pressure: 10 cm: 95 dB
    Min. Illumination Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR)
    Supplement Light Range White light up to 20 m, IR light up to 30m
    Image Enhancement BLC, HLC, 3D DNR
    Network Protocols TCP/IP,ICMP,HTTP,HTTPS,802.1x,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,UPnP,SMTP,IGMP,QoS,IPv6,UDP,Bonjour,SSL/TLS,WebSocket,Onvif
    Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection(support human and vehicle detection)
    General
    HousingMetal&Plastic, White color Operating PowerPoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR
    DC12V outputDC12 V,100 mA output Audio input/output1 input (line in),1 output (line out)
    Alarm nput/output1 input, 1 output (max. 24 VDC, 1 A) Hardware ResetYes
    Operating Temperature-22 °F – 140 °F /-30°C – 60 °Ct WeightApprox. 600 g (1.32 lb.)
    Weatherproof RatingIP66 Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)138.1 × 101.1 × 120.4 mm
    HousingMetal&Plastic, White color
    Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
    DC12V outputDC12 V,100 mA output
    Alarm nput/output1 input, 1 output (max. 24 VDC, 1 A)
    Operating Temperature-22 °F – 140 °F /-30°C – 60 °Ct
    Weatherproof RatingIP66
    Dimension (L x W x H)138.1 × 101.1 × 120.4 mm
    Operating Power PoE (802.3af),12 VDC ± 25%,Ø 5.5 mm coaxial power plug
    Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB, support NAS, NVR
    Audio input/output 1 input (line in),1 output (line out)
    Hardware Reset Yes
    Weight Approx. 600 g (1.32 lb.)
    Indoor/Outdoor Indoor/Outdoor
