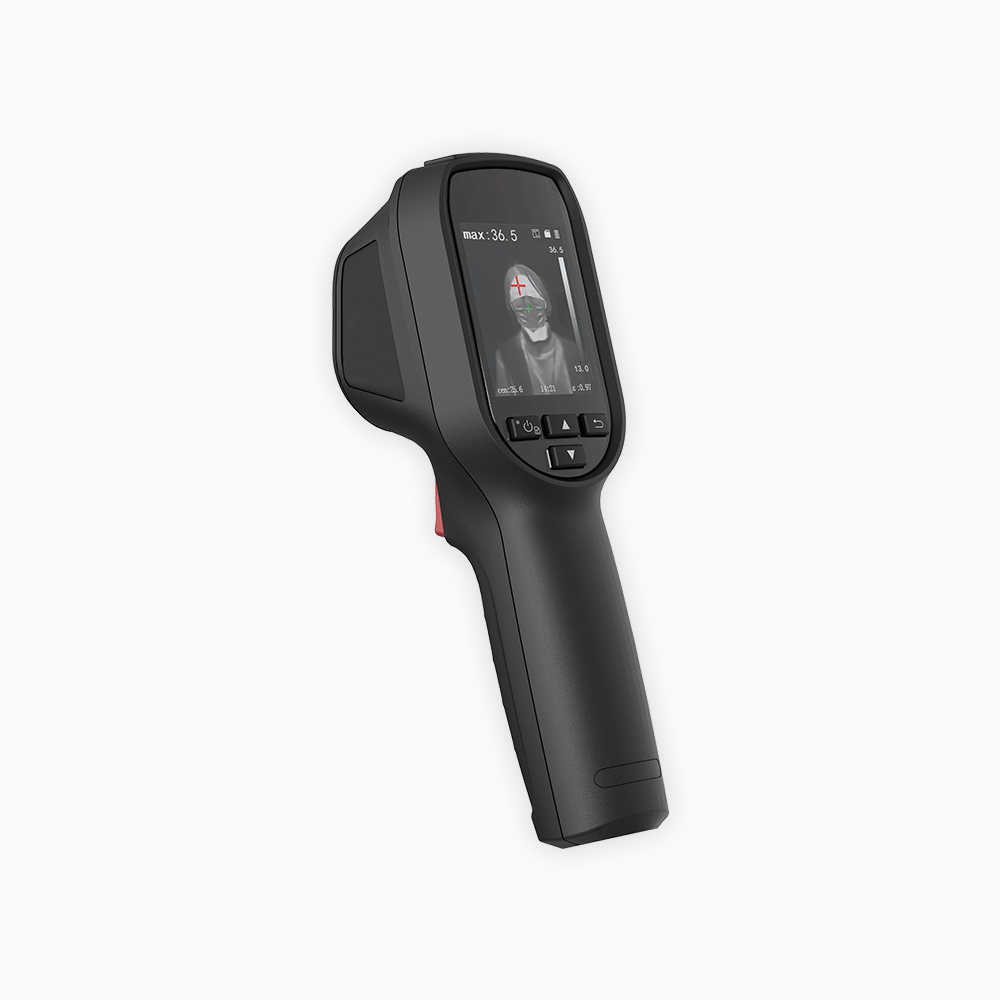

Fast & Accurate Temperature Screening
The handheld thermographic camera, with the highly sensitive sensor (160 X120 resolution), detects the real-time temperature and displays it on the screen. Provide accurate temperature measurement up to ± 0.5 °C.
2.4’’ LCD with 320 X 240 Resolution
Users can monitor visitors’ body temperature with the thermal camera’s 2.4’’ LCD without extra monitoring devices. If the visitor’s body temperature exceeds the preset value, the display temperature will turn red to alert you instantly.
8 GB Local Storage to Store Snapshots
The handheld pistol-grip thermography camera comes with the built-in 8 GB SD card to save the snapshots and important data. For more storage space, you can replace the default 8 GB memory card with an up to 128 GB SD card.
Rechargeable Battery Powered
The rechargeable battery power thermal IR camera can keep working for up to 8 hours with one charge. Free you from frequent charging.
Best Solution for Fever/Temperature Screening
Install the thermal security camera solution for the office entrances, supermarkets, factories, warehouses, buildings, schools, stations, airports, etc. for preliminary temperature screening.
|
Thermal Module |
Image Sensor |
Uncooled Focal Plane Arrays |
|
Max. Resolution |
160 X 120 |
|
|
Pixel Pitch |
17 μm |
|
|
Response Waveband |
8 μm to 14 μm |
|
|
NETD |
< 40 mK (@ 25 °C, F#=1.0) |
|
|
Field of View |
37.2° X 50 ° |
|
|
Focal Length |
3.1 mm |
|
|
IFOV (mrad) |
5.48 mrad |
|
|
Min. Focus Length |
≥ 150 mm |
|
|
Aperture |
F 1.1 |
|
|
Image Display |
Monitor |
320 X 240 Resolution 2.4’’ LCD Display |
|
Palettes |
Black hot, White Hot, Rainbow, Ironbow |
|
|
Thermography |
Rules |
3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature |
|
Thermographic Range |
30°C to 45 °C |
|
|
Thermographic Accuracy |
± 0.5 °C |
|
|
Battery |
Battery Type |
Rechargeable Lithium Battery |
|
Battery Operating Time |
8 Hours Continuous Running |
|
|
Storage |
Replaceable Memory Card (Default 8 GB, Support up to 128 GB Storage) |
|
|
Photo |
Thermal image |
|
|
Language |
English |
|
|
General |
Power |
3.7 V DC/0.4 A |
|
Power Consumption |
Less than 1.2 W |
|
|
Hardware Interface |
Micro USB |
|
|
Working Temperature |
10 °C to 35 °C |
|
|
Protection level |
IP54 |
|
|
Drop Test Height |
2 m (6.56 feet) |
|
|
Dimension |
196 mm X 117 mm X 59 mm (7.7 ″ X 4.6 ″ X 2.3 ″) |
|
|
Weight |
Approx. Less than 350 g (0.77 lb.) |
|
|
Accessory |
Power Adaptor, USB Cable, 8 GB Memory Card, User Manual, Disk, Wrist Strap |
