ANNKE NCK500 8 Channel 2 Bullet & 6 Turret Camera Color Night Vision PoE System - ANNKE Store

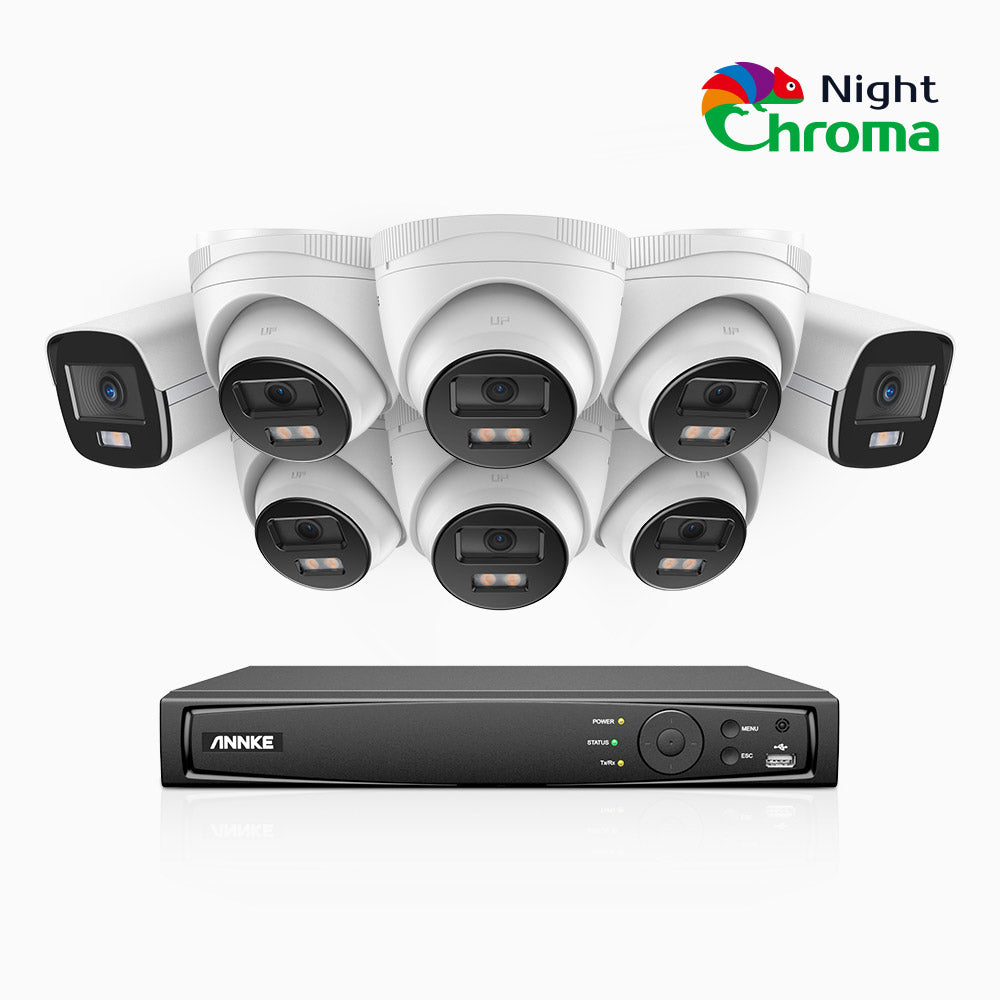

NightChromaTM NCK500 - 3K 8 Channel PoE Security System with 2 Bullet & 6 Turret Cameras, Acme Color Night Vision, f/1.0 Super Aperture, Active Alignment, Built-in Microphone, IP67

NightChromaTM NCK500 - 3K 8 Channel PoE Security System with 2 Bullet & 6 Turret Cameras, Acme Color Night Vision, f/1.0 Super Aperture, Active Alignment, Built-in Microphone, IP67

C$1,116.99

C$1,568.99

SKU: N48PAW+I81HD*2+I81HE*6

HDD Capacity

Tags: 3K , 8 , ACE Color Night Vision , Bullet & Turret , NVR 8CH

Bring Rich Colors to
the Night

COLOR

Night Vision
View Colors at Night

3K

Super HD
See Further & Clearer

121° FOV

2.8 mm
Cover Wide Areas

IP67

Weatherproof
Brave All Climates

Unique & Unrivaled Tech Behind
Acme Color Night Vision

REAL acme color night vision can only be realized with the top-level R&D abilities, top-notch materials & top-grade manufacturing techniques – NightChromaTM NCK500 combines the world’s most leading-edge technologies, able to provide incomparable 3K QHD color night vision – that’s the future of video surveillance.

Only security cameras with f/1.0 super aperture can capture acme color night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colorful details.

The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

The soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare. Remove overexposed or underexposed issues & capture 3K footages with balanced lighting.

Stunning 3K Super HD at Smooth 20 fps

The advanced 1/2.7'' CMOS sensor creates true 3K Quad HD images at a pixel ratio of 2560 X 1440 and records videos at 20 fps.

Work with ANNKE NVRs for 24/7 Record

This IP video camera can work standalone for your unlimited live stream. You can also connect the camera to an ANNKE PoE NVR with just a single Ethernet cable for 24/7 record.

4 World-Class Image Enhancement Tech

The camera adopts 4 incredible image enhancement technologies – 120 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 3K Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

Industry-Leading H.265+ Video Format

H.265+ video compression tech consumes less bandwidth & storage space than H.264, without losing 3K QHD quality. Quadruple H.265+/H.265/H.264+/H.264 video format allows for maximum encryptions and backward compatibility with legacy platforms.

Built to Brave Extreme Hot & Cold Climates

Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-22 °F to 140 °F), ensuring all-year-round protection wherever you live.

Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Noise-Cancelling Audio

    The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.

    Listen-in Audio

    Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footages.

    Mute Function

    Audio record might be regulated based on your location. If the audio surveillance is not allowed or you don’t want audio record, simply mute it.

    True Plug & Play PoE Connection

    If you have a PoE NVR or injector, simply connect the PoE bullet IP camera to the NVR/injector with just a network cable for both data & power transmission – no messy cabling, ideal for DIY lovers.

    Small on Prices, Big on Features

  • Support RTSP & ONVIF

    Integrate the camera to third-party software & ONVIF 4K system, like Blue Iris, Synology, etc.

  • Smart Motion Alerts

    Receive instant app pushes & email alerts upon there are motion events.

  • Unlimited Remote Access

    Easily access your system via intuitive ANNKE Vision App from virtually anywhere in the world.

  • PoE or DC Power

    Power on the camera via PoE or plug the camera to an outlet for power supply.

  • Specification

    Download NC500 Specification

    What's in the Box
  • ➀ NC500 Security Camera(s) ((The quantity varies based on your choice.))
  • ➁ 1X Mounting Screw Bag
  • ➂ 1X User Manual
  • Camera
    Image Sensor1/3" Progressive Scan CMOS Video Bitrate32 Kbps - 8 Mbps
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Substream50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio InputBuilt-in Microphone, record with audio
    Lens2.8 mm@F1.0 Day & Night24/7 color imaging
    Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light Angle of ViewHorizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeWhite Light Supplement Light RangeUp to 30 m
    Motion detection 2.0Supoort, include Human & Vehicle detection Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface(Profile S, Profile T, Profile G), ISAPI
    Wide Dynamic Range120 dB WDR Region of Interest (ROI)1 fixed region for main stream
    Privacy Mask4 programmable polygon privacy masks General FunctionRotate mode, mirror, password protection, remote access
    Image Sensor1/3" Progressive Scan CMOS
    Main Stream50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
    60 Hz:  20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)
    Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
    Lens2.8 mm@F1.0
    Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
    Max resolution3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display
    Supplement Light TypeWhite Light
    Motion detection 2.0Supoort, include Human & Vehicle detection
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Wide Dynamic Range120 dB WDR
    Privacy Mask4 programmable polygon privacy masks
    Video Bitrate 32 Kbps - 8 Mbps
    Substream 50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
    60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)
    Audio Input Built-in Microphone, record with audio
    Day & Night 24/7 color imaging
    Angle of View Horizontal FOV: 96°, vertical FOV: 52°, diagonal FOV: 113°
    Video Compression Main stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light Range Up to 30 m
    Image Enhancement BLC, HLC, 3D DNR
    API Open Network Video Interface(Profile S, Profile T, Profile G), ISAPI
    Region of Interest (ROI) 1 fixed region for main stream
    General Function Rotate mode, mirror, password protection, remote access
    General
    Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port HousingMetal & Plastic
    ColorWhite Hardware ResetYes
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C Indoor/Outdoor UseIndoor/Outdoor
    Interface ProtectionIP67 Dimension (L X W X H)Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")-I81HE/ Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")-I81HD
    WeightApprox. 420 g (0.9 lb.)-I81HE / Approx. 430 g (0.9 lb.)-I81HD
    Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB
    Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Interface ProtectionIP67
    Housing Metal & Plastic
    Hardware Reset Yes
    Operating Power DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor Use Indoor/Outdoor
    Dimension (L X W X H) Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")-I81HE/ Ø 76.6 mm × 164.4 mm (Ø 3" × 6.5")-I81HD
    WeightApprox. 420 g (0.9 lb.)-I81HE / Approx. 430 g (0.9 lb.)-I81HD
